Design and construction of precision embossing line for beer labels paper. Automatic line should be able to process different materials as metallized paper, plane paper, laminates, etc.

Activity

Labeling solutions

Markets

Food & Beverages, Wine & Spirit

Main key steps of the project

  • NDA (Non-disclosure Agreement) between the client and ILAMCO to ensure confidentiality of the exchanged information.
  • Customized solution definition according to specific customer requirements in terms of line flexibility (materials and applications).
  • Detailed design of the line.
  • Engineering Project validation.
  • Production process with periodical meetings with the client in order to follow up the construction process, discuss any technical issues and validate a perfect alignment of the Project with the client’s objectives.
  • Assembly and commissioning.
  • FAT (Factory Acceptance Test) in ILAMCO facilities.
  • Disassembly and expedition.
  • Assembly, start up and SAT (Site Acceptance Test) in client’s facilities.
  • Sustainable long-lasting partner relationship in order to ensure the good fulfilment of the objectives of the Project.

Technological solution scope

Independent embossing line for beer labels composed by the following units:

  • Special shaft-less unwinder with web guide system and splices detector.

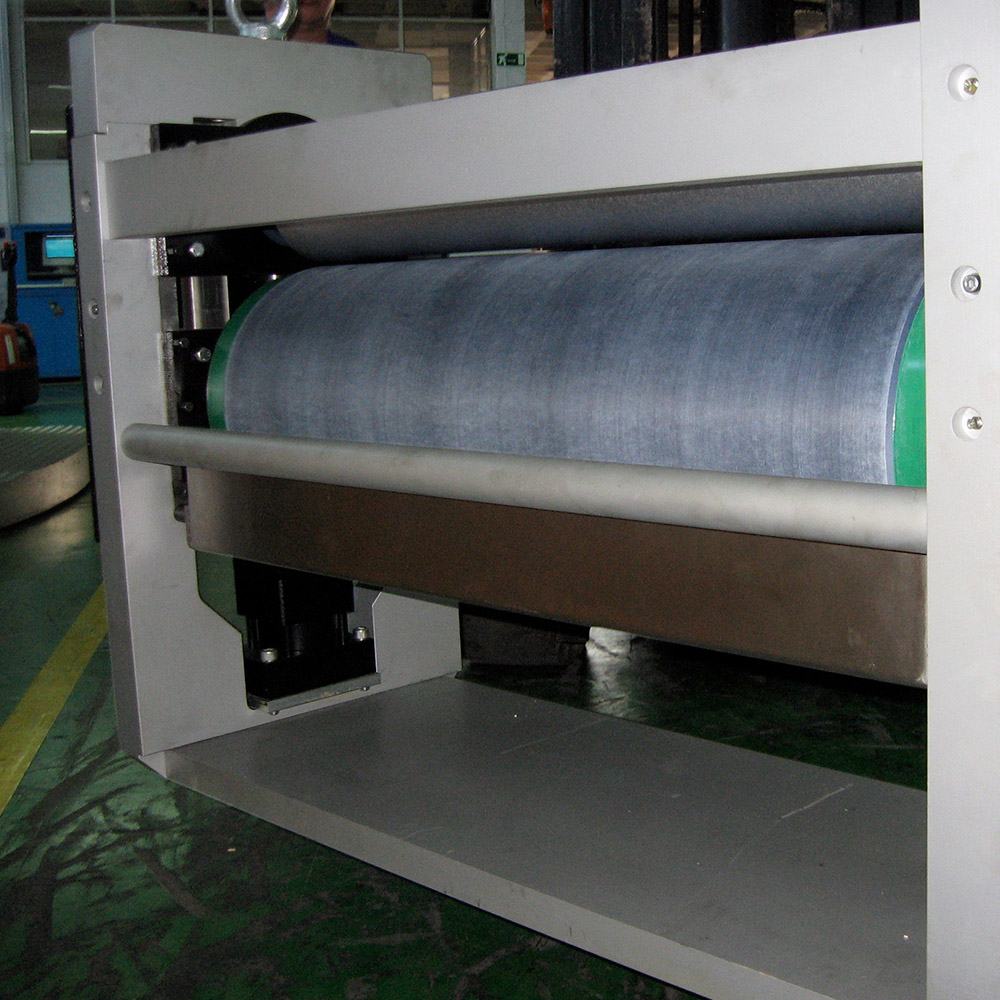

  • Embossing unit with interchangeable system (for other patterns) with
  • Steel/Paper embossing rollers.
  • Shafted rewinder unit for carefully wound high quality embossed reels.

Key Technology Achievements

  • Interchangeable system allowing easy pattern changes
  • Embossing unit design allows combine either Steel/Paper rollers system or Steel/Steel rollers system.
  • Splices detector is combined with a special hydraulic circuit to get fast reaction when embossing rollers should be opened to avoid splices effect.

Business added value

  • Improved market presence thanks to easy changes and reduced dead times to produce a wide range of products (different patterns and different materials).
